DEFINISI STEEL GRATING

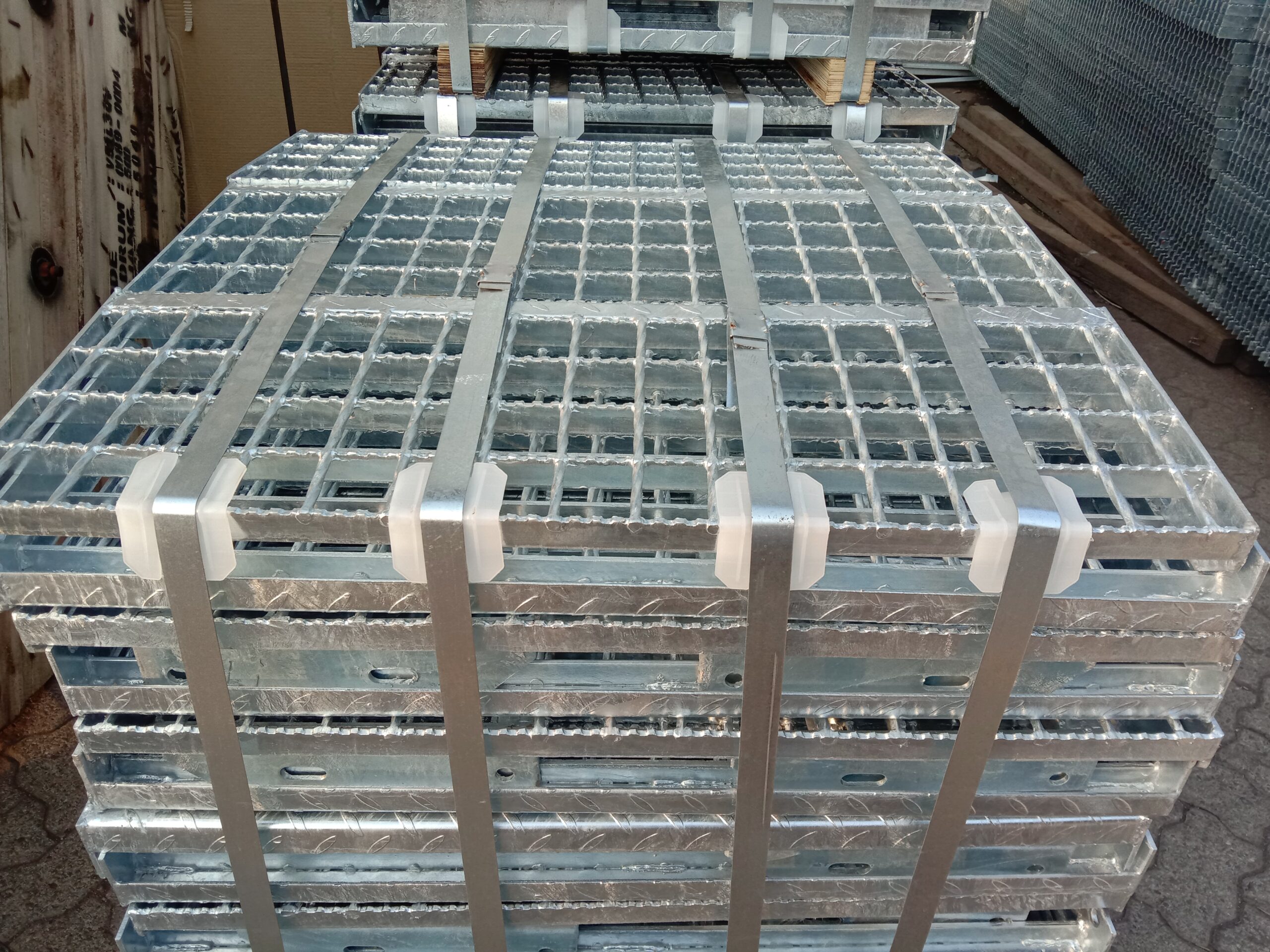

Apa itu steel grating ? Steel grating adalah sejenis baja dapat berbentuk kotak-kotak dan silang yang saling berhubungan pada antar bagian  dengan menggunakan pengelasan ataupun dengan penguncian.

Informasi dasar mengenai Steel Grating:

1. Bearing Bar – A flat bar withstanding the main load is in consistent with the span direction

2. Bearing Bar Pitch – The Distance center to center of the two adjacent cross bars

3. Cross Bar – The Connecting bars, made from twisted bar, round bar or flat bar, which extend accross the bearing bars

4. Cross bar pitch – The distance center to center of the two adjacent cross bars

5. Length – The maximum dimension of grating panel, measured parallel to the bearing bars & in the same direction as the bearing bars.

6. Width – The maximum dimension of a grating panel, measured perpendicular to the bearing bars, & in the same direction as the cross bars.
